center holes iso 6411

[IronMike87]

Good evening to all,
in my company we mainly perform the type of holes in object to ensure effective piece grip.

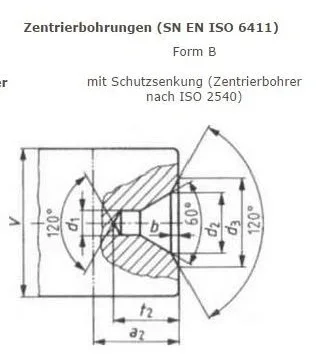

mainly we make type b holes with the geometry you see belowI know that you can change the existing geometry of the holes with the toolbox, but can you add new ones?
because maybe I became blind, but I just didn't find this geometry creation wizard holes.

as I draw them every 2 seconds, I wanted to find a quick and painless way to make them. :redface:




ps use solidworks professional 2017



[MassiVonWeizen]

you can make a library function (recommended so you learn something new that can be useful for other standards) or download one http://solidworks.cad.de/libf_div01.htmfor the toolbox that could be a hollow hole with initial bevel (or if not allow to put the bevel add it with a later function)



[IronMike87]

you can make a library function (recommended so you learn something new that can be useful for other standards) or download one http://solidworks.cad.de/libf_div01.htm

Thanks massive. I will see to deepen the library function (never used before).

Thank you.



[meccanicamg]

library functions can also be found on 3dcontentcentral. the center holes have already made them... I use them little but I had dumped them from there.
