component block on set

[devildodger]

I have this set (see pdf attached).

I coupled the 2 components, but I need to lock the component with the socket, as it turns 360 °. How do I do that? I have inserted plans, axes, to mate together but nothing.

Thank you.



[pritio72]

you must rend the fixed component, even if you have already given a bond (automatically it is suppressed)
I attach images before and after.

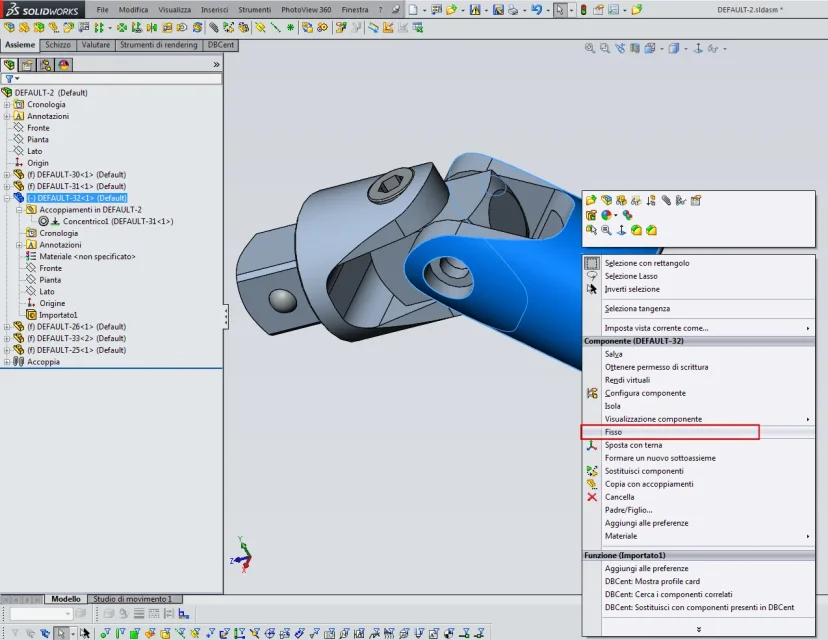

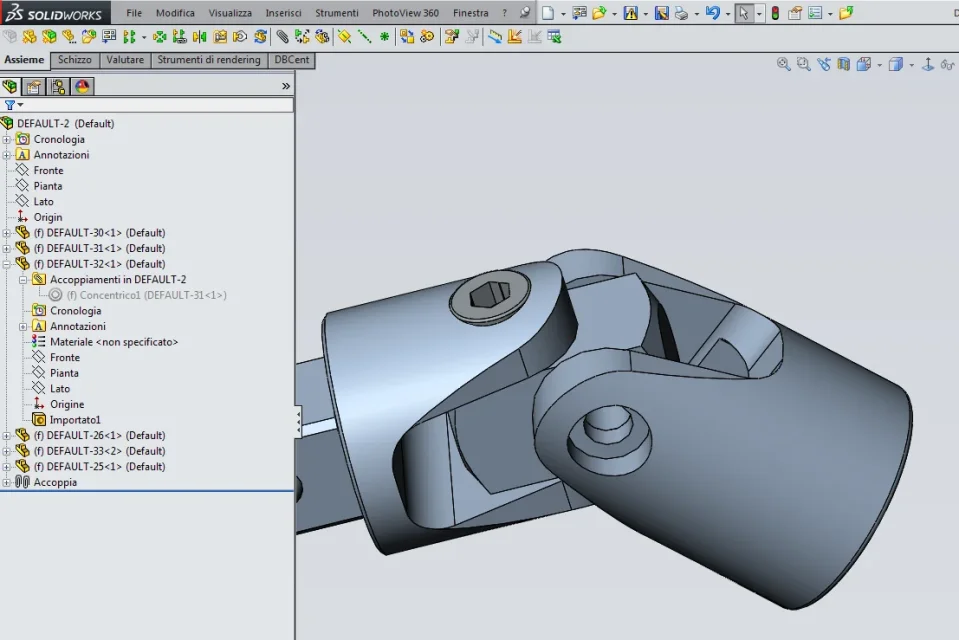

to fix itafter fixing



[marcofor]

if you have set the concentric bond to place the component with the socket you can use the rotation lock option



[devildodger]

Okay perfect, thank you. But I need the passing plan for the heads of the asola to be perfectly perpendicular to the axis of the body. How do I do that?



[Mike1967]

I don't understand why you don't grab the screens with the feature manager.. .
Sorry, but when you created the two components in the side file, there were no plans.
where did you insert sketches to etrude or revolve forms?
Maybe you should start with the tutorials and you will see that it will seem trivial what you are trying to do.
