Good morning to all.

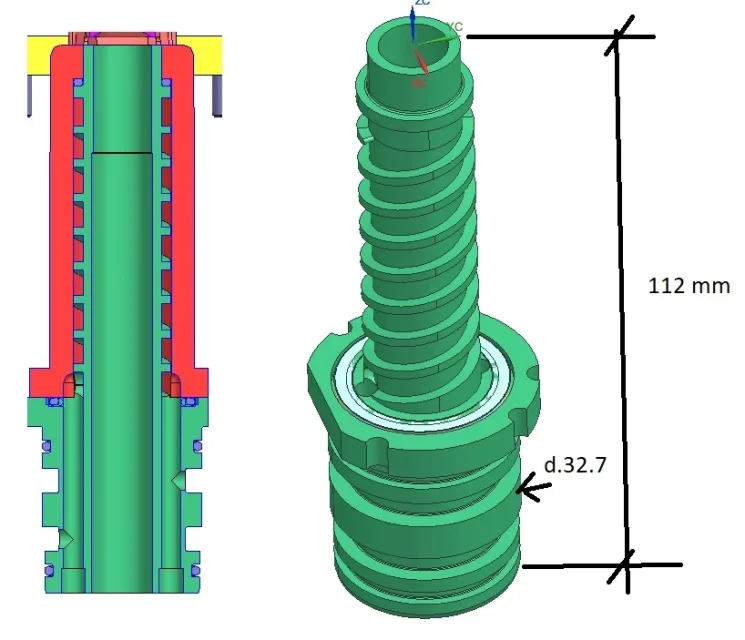

I have to buy the normalized (I think) component of the image in exchange for an existing one.
I have searched among the main suppliers of hasco components dme etc. but I can't find anything.
to the eye is a spiral fountain for injection molds, I don't know the material.
Unfortunately the German company that designed the mold failed and I do not have the distinct base.
if someone recognizes what supplier it belongs to would help me a lot.
Thank you.
Palo



[Fabietto]

the component concept is standard,
but seeing the shape I seem to understand that in the center there is an expeller, and the terminal part ends up in figure. .
I wouldn't want it to be a design component, along with the red compass. .
Usually spiral fountains are inserted into blind holes, have simpler forms, and are usually made of plastic. .



[Paploz]

the component concept is standard,
but seeing the shape I seem to understand that in the center there is an expeller, and the terminal part ends up in figure. .
I wouldn't want it to be a design component, along with the red compass. .
Usually spiral fountains are inserted into blind holes, have simpler forms, and are usually made of plastic. .

all correct, expeller in figure in the center and also according to me the red compost is drawing.
It seems to me a bit complex to make drawing but it may be that the mold manufacturer used it for various similar molds and if it is industrialized . to do it from scratch it seems very expensive.
