cosmetic threads, relationships and family table

[AndreaG85]

Hello.
I am creating family tables today, and I would like to be able to guide cosmetic threads through relationships by connecting it to the diameter of extrusion.
I managed to connect the major diameter, but it doesn't seem to work. the lower diameter does not vary accordingly.
Can someone help me? Thank you.



[AndreaTerzi]

Good morning.
Your question is not clear. the cosmetic thread has as its share the diameter of the throat indifferently if the thread is male or female. the diameter of the thread is that of the solid where you will apply the thread. in both cases however the diameter can be placed in family table.



[AndreaG85]

the thing I would like to know is whether, taking for example a diameter of the 8mm stem, to put a relationship that directly connects the ø to the cosmetic thread (m8x1,25 ) and then to the variation of the ø of the stem, various consequently the thread .
for example with a diameter of 6 , a thread m6x1.

I know that I can bind the values to the family table by inserting the values in the table, I just wanted to know if it was possible to automate the thing by entering relationships and reducing the number of variables in the table.



[AndreaG85]

I add that, I don't know why, that I can with the relationships lead the hardness of the cosmetic thread while I can't change the diameter:

major_diameter:fid_1238=ø_vite (not working, not varying to the ø screw variation)
d84=l_vite (functioning)



[320i S]

Are you doing cosmetic filettura with values you insert?, or are you using thread tables by selecting thread from the special menu?



[Shotfree]

ciao @andreag85 ,

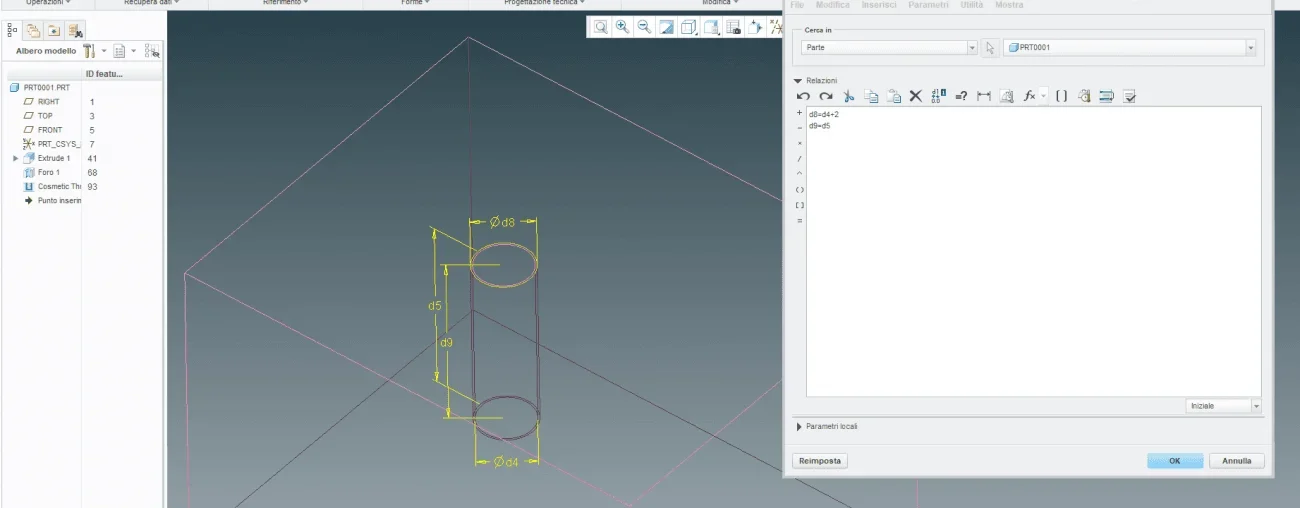

insertion in relation to cosmetic works without any problem, below I show you an example:
only shortness is to realize the hole as processing to itself, then cosmetic and not threaded hole.
this particular attention is necessary, since the cosmetics of the threaded hole is guided by a table and therefore it is not allowed to change through relationships.
try to realize the two separate jobs and see if the result fills with your expectations.



[320i S]

ciao @andreag85 ,
insertion in relation to cosmetic works without any problem, below I show you an example:
View attachment 55138only shortness is to realize the hole as processing to itself, then cosmetic and not threaded hole.
this particular attention is necessary, since the cosmetics of the threaded hole is guided by a table and therefore it is not allowed to change through relationships.
try to realize the two separate jobs and see if the result fills with your expectations.

exact, using the feature hole with cosmetic thread, it is not possible to put in family, because at that point it is the drilling table to command and no longer quotas.



[AndreaG85]

Thank you all.
I thought it was possible to do so by simply assigning the surface and the cosmetic fiettatura iso, but it is not possible.
in the end with reports and few parameters in the table I managed to do everything
