small trouble with an imported file.
using an "electronic" program (cadstar creed) I was given an idf file to import into pro-e, to create the 3d model of an electronic card.
imported like asm, I see everything perfectly. particular: during the design of the circuit, the electronic has "given a name" to each component (e.g.:r1-cn2 etc.) that in the axieme I see setting tree columns - feat name.
I make the drawing, I can view this information on a view as annotations.
problem: table components.
as you can well imagine, in a circuit there can be mechanically identical components, but with the name (the one given by the electronic designer) different.
I'll explain. I could have two equal connectors, which my electronic called cn1 and cn2... in my model tree I will have 2 components called "connector" which will have as reference designator in one cn1 case and in the other cn2.
if I create the table (to make the bom) indicating the parameters: quantity, description, reference (useful for bubble) and name part I have no problem.
the same components are "summated" and I get the table with (for example): 2 connectors, 4 resistors and so on.
if I insert in the table the reference designator I get a table with all the components to quantity=1 ... so instead of having 2 connectors, I have 1 connector cn1 which is called pip, 1 connector cn2 which is called pip and so on...
it is not possible to create a field in which to insert all reference designator (which I know, maybe separated by a comma), so to have 2 connectors cn1, cn2...? ? ?

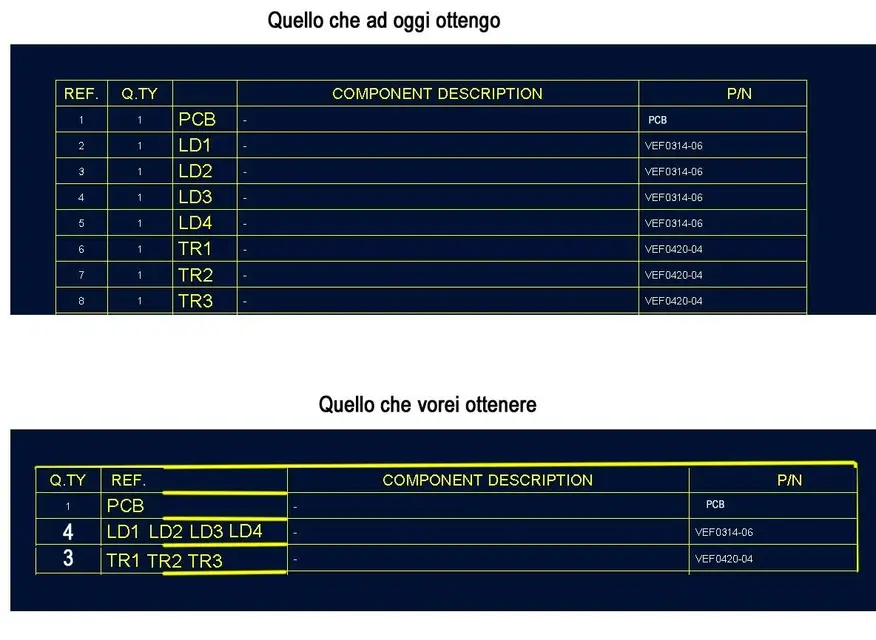

to make me better understand allego 1 image with represented what I have and what I would like to get. . .
