htd profile 9.525

[rallye]

Good morning to all,
I looked for by sea and on land but I couldn't find practically anything about the formulas and size characteristics of the htd profile, typically used in the distribution of motors.
someone who can help me? I'd like to draw some pulleys with z=40.

Thank you!



[stefanobruno]

there will be a reason why you want to draw them, but there are already the models provided by various manufacturers ( sit / clavals ).
unless they have special materials or shapes, the pulleys are bought and reworked.



[marco.mz]

Hello rallye,
have you already checked on the site of the sit spa catalogues and tools for calculating broadcasts? Surely you will find material for straps with metric sizes, but the step in in inches you put in the title I'm not sure.



[rallye]

I would like to draw it because with this step there is nothing, but only in standard 3m, 5m, 8m and 14m. I watched on the site both of clavals and sit, nothing, only "standard" steps. .



[stefanobruno]

made with tool inventor



[rallye]

Thank you! But it doesn't convince me the shape of the tooth / throat, the htd should be more rounded, not trapezoidal, right?



[stefanobruno]

Surely the file doesn't have the right profiling, if you fresi could have problems.
I don't know how convenient it is to get a full pulley, special needs apart.
in the forum you always mention kiss-soft as top for profiling of gear teeth, I don't know if you do even synchronous pulleys, but I think it costs a figure not compatible with drawing a piece.



[Stefano_GS]

Hi.

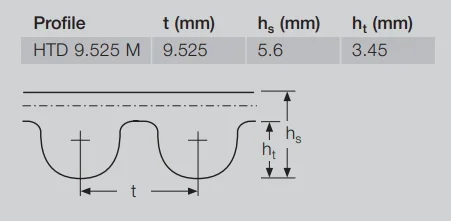

the reference standard is the iso13050 for standard steps, step 9.525 is not standard for htd profiles



[rallye]



[TETRASTORE]

for toothed pulley straps used in the car with step 9.525 you should find what you need qui, qui e qui.
you can find other resources by typing on search engines: tooth profile dimensions for type za and zb pulley.



[rallye]

for toothed pulley straps used in the car with step 9.525 you should find what you need qui, qui e qui.
you can find other resources by typing on search engines: tooth profile dimensions for type za and zb pulley.

Holy Subito!!! :d
