Hi.
I'd like to ask you a couple of things about a gear made up of pinion and toothbrush.

how do I determine the transmission ratio?
and above all, how do I determine the relationship of conduct?

search on the forum that there are formulas.
There is no transmission report.
a lazy lap is the primitive circumference put in linear running on the rack.

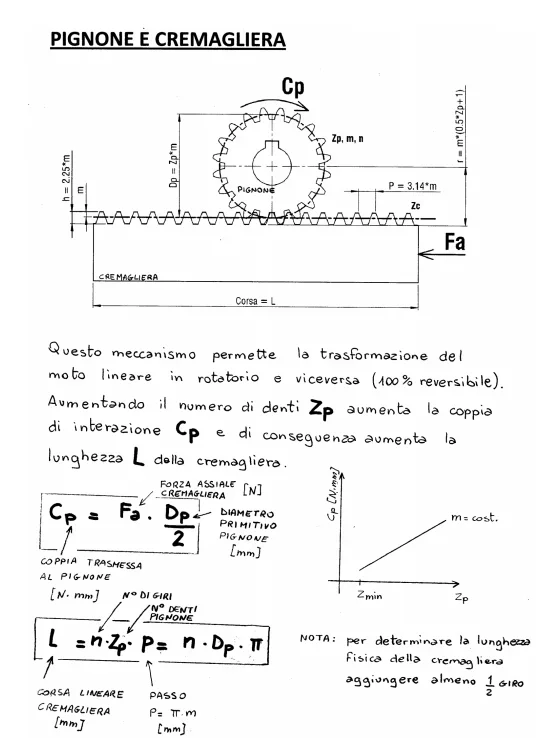

I attach the formulas that relate the lazy and rack system.
Unlike the gears of any kind, this mechanical motion transmission system transforms a force into a pair and vice versa but does not multiply or divide a good nothing. Therefore, I repeat this concept, which I too often see distorted, there is no reduction report.

the quota does nothing but turn and the circle of the primitive does the same race that makes the rack in a linear way. so everything is a primitive circumference horizontally placed.pignone cremagliera.webp
