hi to all, I wanted to ask you if there is a table showing compatibility with the various types of couplings in relation to the type of entity used. I found a table for think design and more tables for solidworks but I can't find anything for proe4. Can you help me?

Thank you very much

Hi.

I don't understand what you're asking, but knowing t3, maybe I can get there, do you need to know the shocks linked to a tolerated quota?
If yes, in proe, you must first
set standard tolls, load tolerances:
edit | setup | tol setup | standard
edit | setup | tol tables | retrieve |
and then change the parameters of the quota, visulizzando le tolerancence table
as holes / trees / general
selecting tolerance mode ( plus-minus ) you will see the deviations. . .

thanks for the answer, in fact my question is more trivial, e.g.:

ball coupling is applicable at point-by-point entity,
coincidence coupling can be used between plan and line...

In practice I am writing a bit of a comparison between think design, proe4 and solidworks, and so I was trying to figure out if there is a table showing that entities can be used with the types of coupling (e.g. rigid ones).

Hi.

zimmy said:
in the manual there are all the references you ask
try with the help online
Click to expand...
Hello unfortunately I use an academic version at the university and I have nothing but the guide on which to rely, can you tell me where I can find this table? in the guide I find the description of the various types of constraints and nothing else.

Hi.

Sorry if I ask you a question.
you are making a comparison table between various cad systems.
but do you know them all at the same level?
Can I ask you what you're doing this job?
It's not to answer but just my curiosity!
Hi.

it is quiet, in practice I am making a sort of benchmark among the three programs from the point of view of a person who has no practice with such environments (novice): in a nutshell a company would like to move from the 2d design system to a 3d system, for them it is an important thing because they would like to exploit the advantages that this solution implies (eg fem analysis or kinetodynamics). I personally have a "didactic" experience with proe3 at the basic level, the other software I did not know them minimally, but within two months I managed (thanks also to your help) to model a typical product of that company with relative puts on the table. So now I'm writing a report on my experience. It is obvious that knowing the environments can be fully exploited (and maybe finding that something extra that they offer), but being a "university" thing is good enough, at least I've had some experience with other software, it can always be useful:-)

I am writing about the way of assembly and I liked to insert a table of this kind since for the other two programmes I found it ;-)

Hi.

Hello aerox,
Axiemi constraints table only saw it on the course manual,
on the help you should have, too, ( help! help center )
find all information about what you are looking for.

I did a print of the bonds together,
but there are so many other things...

Hi.


Attachments

I add a list of info on positioning constraints in addition to the constraints of cinematics
Hi.

Last edited by a moderator:
Hello, guys.

I set the following parameters from config menu:
tolerance
tolerance_standard iso
tolerance_table_dir c:\program files\ptc\creo 2.0\common files\m050\tol_tables\iso

However if I click on a quota do not appear the mating options tree/hole

How can I do that?

Thank you.

320i S said:
on creo?

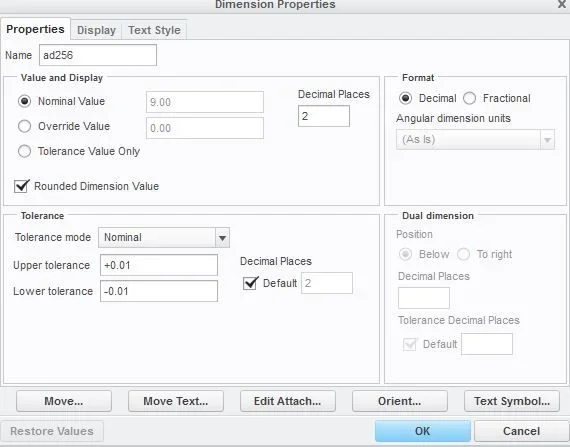

put an image of how it proposes the "properties" tab of a quota.
Click to expand...
just by the office I send you, but everything remains identical to the default. Do I have to put settings on the configuration even on the drawing setup?

si the tol display is active

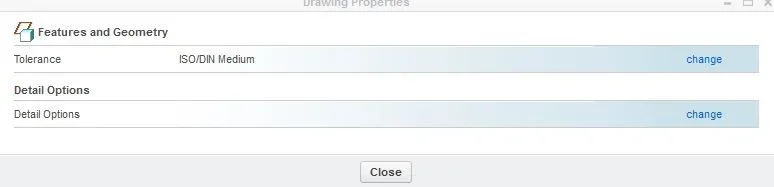

from the drop-down menu I see only the classic nominal, plus,minus etc... but no hole and shaft1.webp2.webp

even if active tol_display by the drop-down menu does not change. I have the academic version so I shouldn't have any limitations

also check on the .pro file to have the tol_display option on "yes".

other I do not have on tolerances as setting.
