syntax version number solidworks

[Alberto Todisco]

Good afternoon to all,

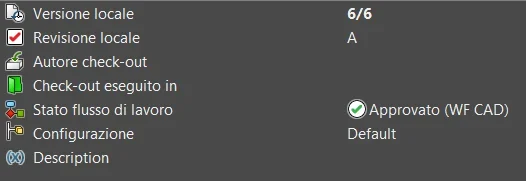

I would like to insert a box dedicated to revision and version of the file: "revision." "version."
Can someone tell me the two parameters?



[MassiVonWeizen]

never seen that screen in solidworks.
the title should be corrected in: syntax number of file version.



[Alberto Todisco]

that screen is linked to the pdm; therefore it is not strictly solidworks



[SperX]

Good morning.

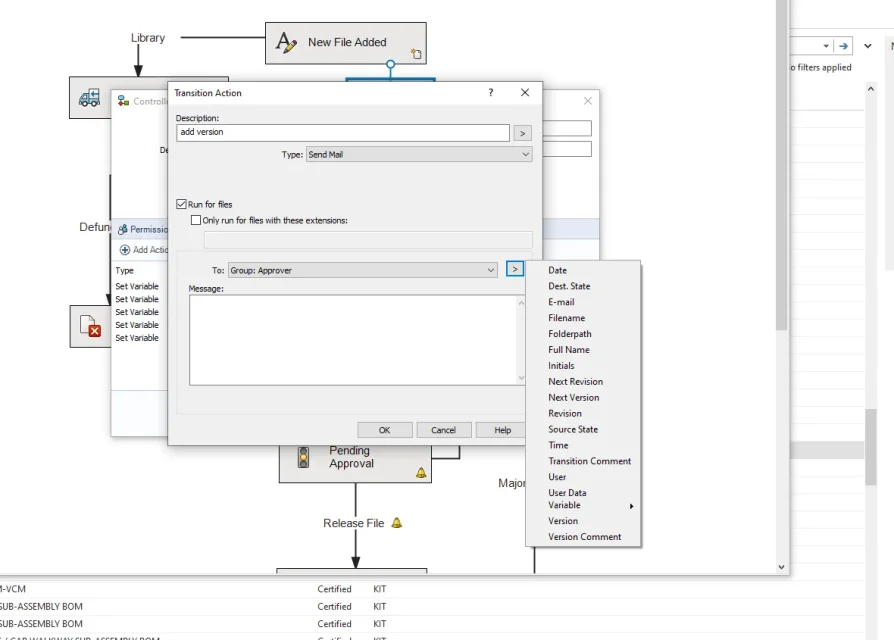

in the workflow to the transaction you have to set the version, I don't know when you want to view it.you will appear in the card, then just enter the link in the design as you do for the review.
I hope I understand and have been helpful to you.



[Alberto Todisco]

thanks sperx for the answer.

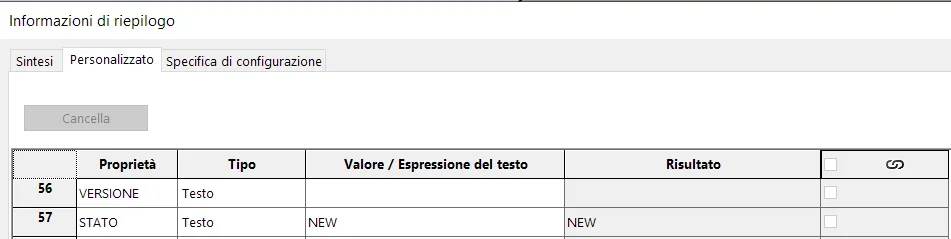

But I don't think that's the solution. the point is that within my parts I already have the "version" parameter but I can't define the syntax so that I read the file version number.



[SperX]

you have to create the pdm variable, and connect it to a transaction the fields should be filled automatically and change whenever you check in.
