SOLIDWORKS PDM: Fix SOLIDWORKS File Associations

After installation, SOLIDWORKS automatically sets up file associations in the registry. However, these associations may get lost over time. Several symptoms indicate this has happened.

Search Issues

Perhaps the most problematic occurs when using Quick Search or the integrated search. The SOLIDWORKS file open or save dialog boxes can stop responding.

Incorrect SOLIDWORKS File Associations Symptoms

Other symptoms:

    • The type of document is incorrect.



      • Note the column Type.



      • The value for SOLIDWORKS parts is “SLDPRT File”. It should be SOLIDWORKS Part Document.





    • The file icon shows a generic SOLIDWORKS icon.



    • Double-click file fails to open the file in SOLIDWORKS.



Fixing SOLIDWORKS File Associations

Here, we’ll cover two methods for resolving the issue:

    • Method 1 – Edit the main registry keys directly.



    • Method 2 – Use a reg file to clear all SOLIDWORKS registry keys, update the associations from SOLIDWORKS settings, and then use a different reg file to fix the icon.



Method 1

Start “regedit” as an administrator and open the key: “HKEY_CLASSES_ROOT”.

Go to each of the SOLIDWORKS file extensions, and check the “(Default)” value. To edit the value, double-click (Default).

They should be:

.sldasm – SldAssem.Document

.slddrw – SldDraw.Document

.sldprt – SldPart.Document

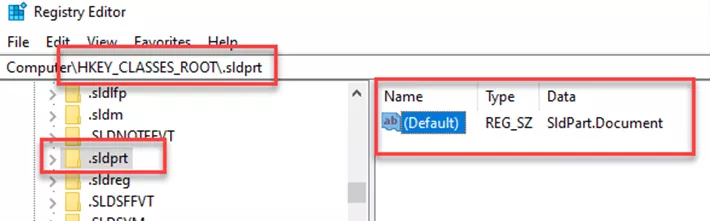

The screenshot below shows the settings for a SOLIDWORKS Part document.

SOLIDWORKS Files Associations Edit Main Registry Keys

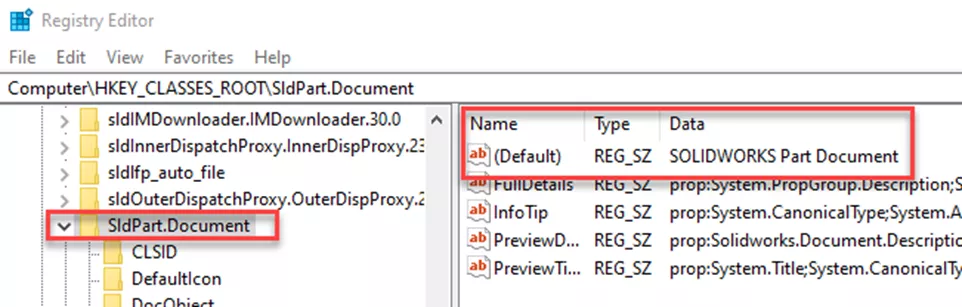

Next, verify the information for each file type. This is still under the HKEY_CLASSES_ROOT section.

Verify Type SOLIDWORKS File Associations

The values should be:

SldAssem.Document – SOLIDWORKS Assembly Document

SldDraw.Document – SOLIDWORKS Drawing Document

SldPart.Document – SOLIDWORKS Part Document

If the issue continues, move to Method 2.

Method 2

Download the registry files here: SOLIDWORKS File associations reg files.zip

    1. Close SOLIDWORKS.



    1. Select Show hidden icons in the bottom right of the screen to access the PDM icon.Show Hidden Icons to Access SOLIDWORKS PDM Icon





    1. Select the PDM icon and choose Exit to exit the vault view.Exit SOLIDWORKS Vault View

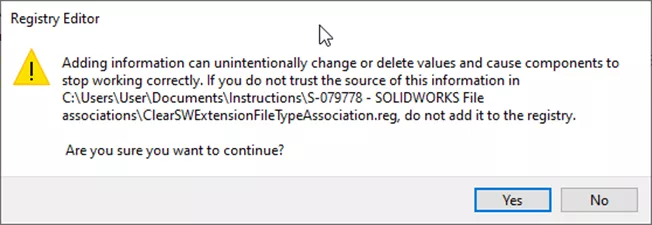

    1. Run the file ClearSWExtensionFileTypeAssociation.reg by double-clicking it. This will clear the registry entries for SOLIDWORKS file extensions. Select Yes on the warning.Registry Editor Warning when Fixing SOLIDWORKS File Associations





    1. Start the SOLIDWORKS application as an administrator.



    1. Go to Tools > Options > General and click Restore File Associations.SOLIDWORKS Restore File Associations System Options





    1. Close SOLIDWORKS.



At this point, the SOLIDWORKS file associations will be restored.

SOLIDWORKS File Icons are Incorrect

If the file associations are good but the icons are incorrect, follow the steps below.

    1. Find the path to the SOLIDWORKS executable: SLDWORKS.exeSOLIDWORKS File Icons Incorrect





    1. Edit SW_DefaultIcon.reg file in Notepad. Right-click the file, and choose Edit then Notepad.Save Edits SOLIDWORKS Fix File Associations





    1. Update the path to the three SOLIDWORKS file types (Part, Assembly, and Drawing) with the current system path to sldworks.exe. Note: You must include two backslashes between each folder.



    1. Save your edits.SOLIDWORKS Default Icon in Notepad





    1. Import the changes to your registry by double-clicking the modified SW_DefaultIcon.reg file.



    1. Select Yes on the warning that will appear.SOLIDWORKS Registry Editor Error Incorrect File Locations





    1. Restart the computer.



If the problem persists, you may need to do a complete uninstall/reinstall of SOLIDWORKS.
