To create 3D objects in DraftSight, DraftSight Premium (either stand-alone Premium or Enterprise Plus) is required. This article is an introduction to basic 3D shapes (box, pyramid, wedge, cone, cylinder, sphere, and torus) and explains how to access the tools to create them.

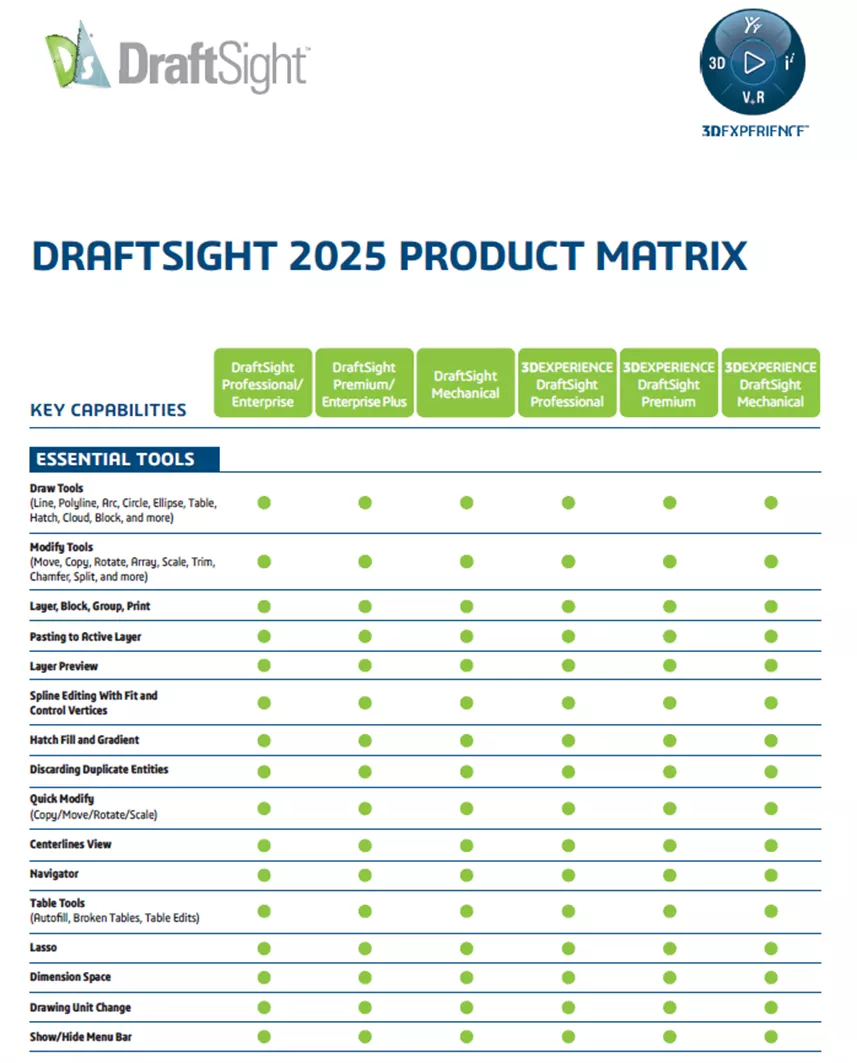

Below is the DraftSight Features Matrix with the Premium tools highlighted.

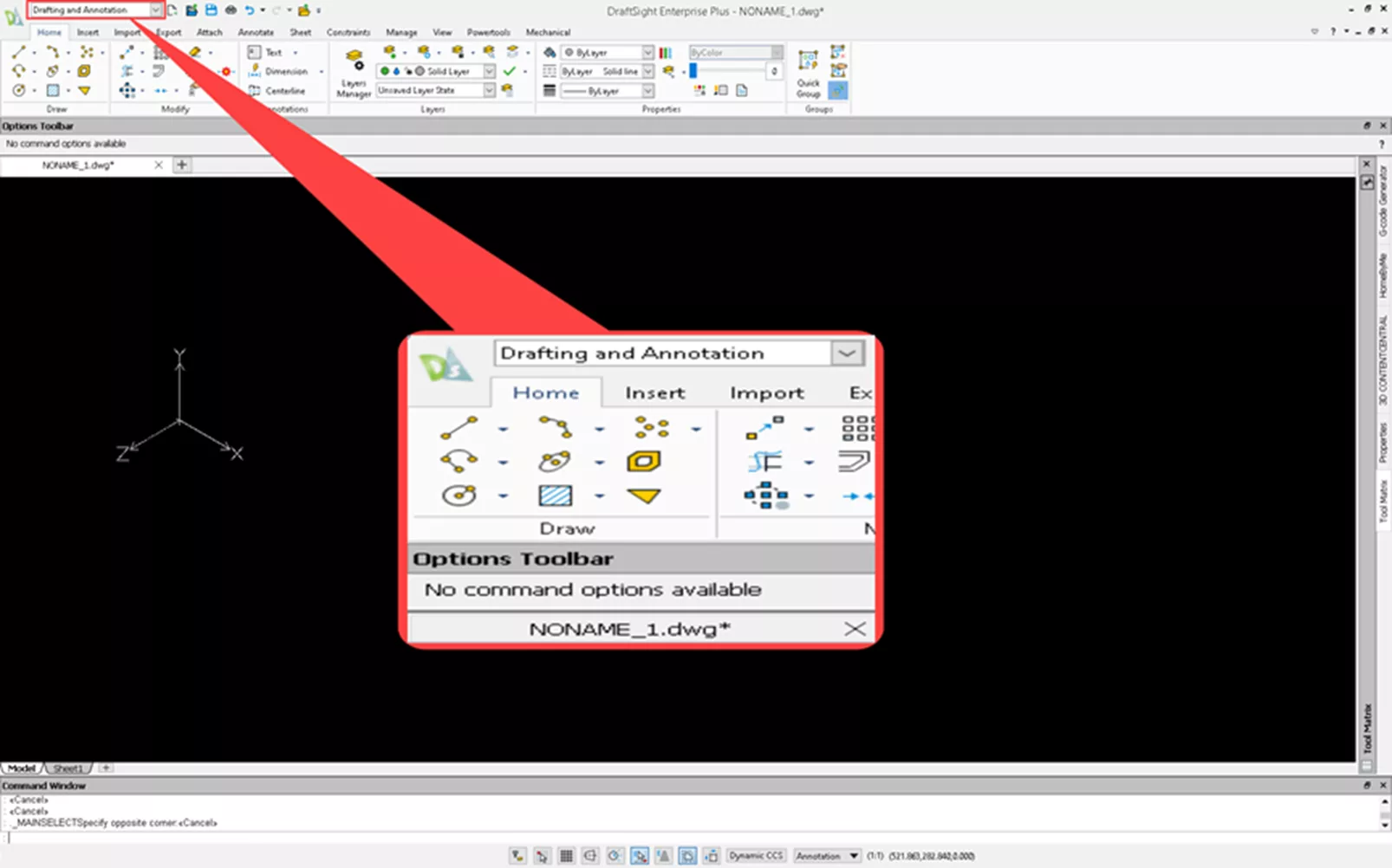

Below is the standard DraftSight interface. Notice in the upper right corner that the Drafting and Annotations workspace is active, and the ribbon tools and tabs are available.

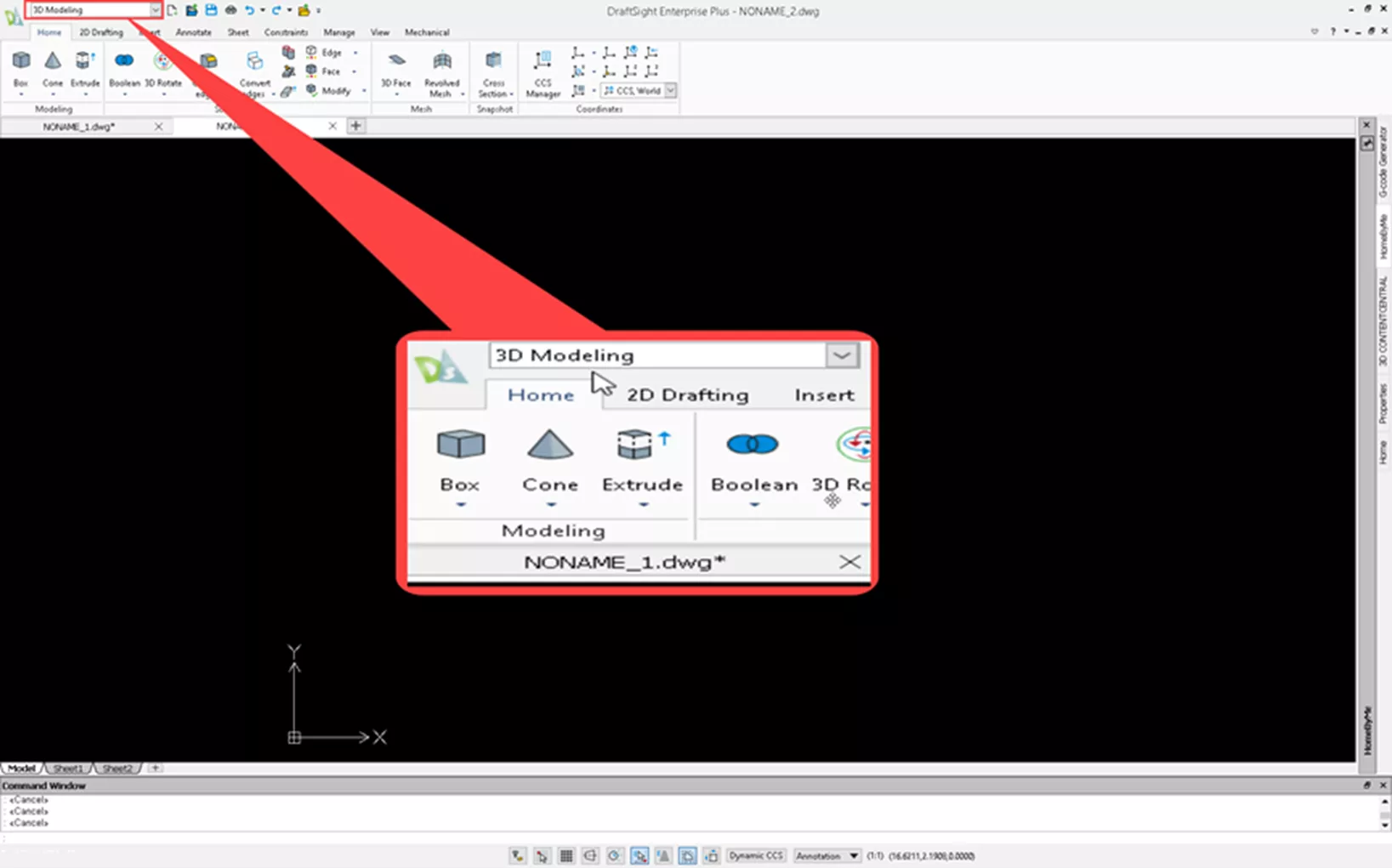

Change the workspace to 3D Modeling to access the tools you need.
Select the View tab > Views > SE-Isometric and change the view to Isometric to see all three axes.
Create a Box

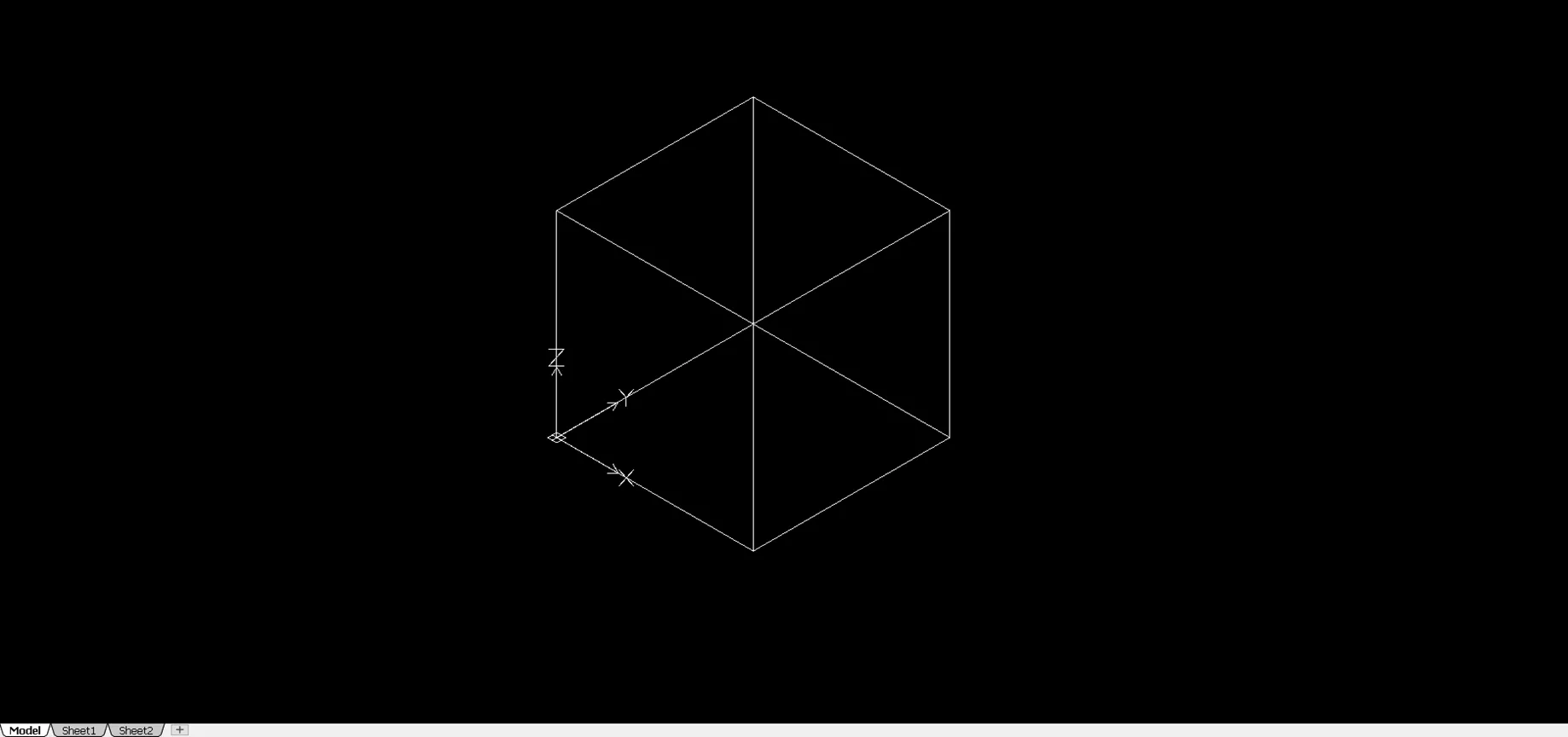

In the Home tab, select Box. The first input will be the first corner. Enter 0,0,0 in the command window. Either move your cursor to 10,10 or enter 10,10. Lastly, click in the positive Z-axis to set the height or enter 10. Your shape should look like this:
To view the box as a solid, open the View tab, select the Shadeview button dropdown, and select Flat with Edges.
The result will look like this:
Select the solid and hit the Delete key.
Create a Pyramid
At the Home tab, select the Box dropdown and the Pyramid tool. The first input will be the center of the base. Enter 0,0,0 in the command window. Either move your cursor to 10,0 or enter 10. Lastly, click in the positive Z-axis to set the height or enter 20. Since the shaded view was already on your shape should look like this:
Select the solid and hit the Delete key.
Create a Wedge
Go to the Home tab, select the Box dropdown and the Wedge tool. The first input will be the corner of the base. Enter 0,0,0 in the command window. Either move your cursor to 10,10 or enter 10,10. Lastly, click in the positive Z-axis to set the height or enter 20. Since the shaded view was already on your shape should look like this:
Select the solid and hit the Delete key.
Create a Cone
Go to the Home tab and select the Cone button. The first input will be the corner of the base. Enter 0,0,0 in the command window. Next will be the radius. Either move your cursor to 10,0 or enter 10. Lastly, click in the positive Z-axis to set the height or enter 20. Since the shaded view was already on, your shape should look like this:
Select the solid and hit the Delete key.
Create a Cylinder
Go to the Home tab, select the Cone dropdown, and then the Cylinder button. The first input will be the center point of the base. Enter 0,0,0 in the command window. Next will be the radius. Either move your cursor to 10,0 or enter 10. Lastly, click in the positive Z-axis to set the height or enter 20. Since the shaded view was already on, your shape should look like this:
Select the solid and hit the Delete key.
Create a Sphere
Go to the Home tab, select the Cone dropdown, and then the Sphere button. The first input will be the center point of the sphere. Enter 0,0,0 in the Command Window. Next will be the radius. Either move your cursor to 10,0 or enter 10. Since the shaded view was already on, your shape should look like this:
Select the solid and hit the Delete key.
Create a Torus

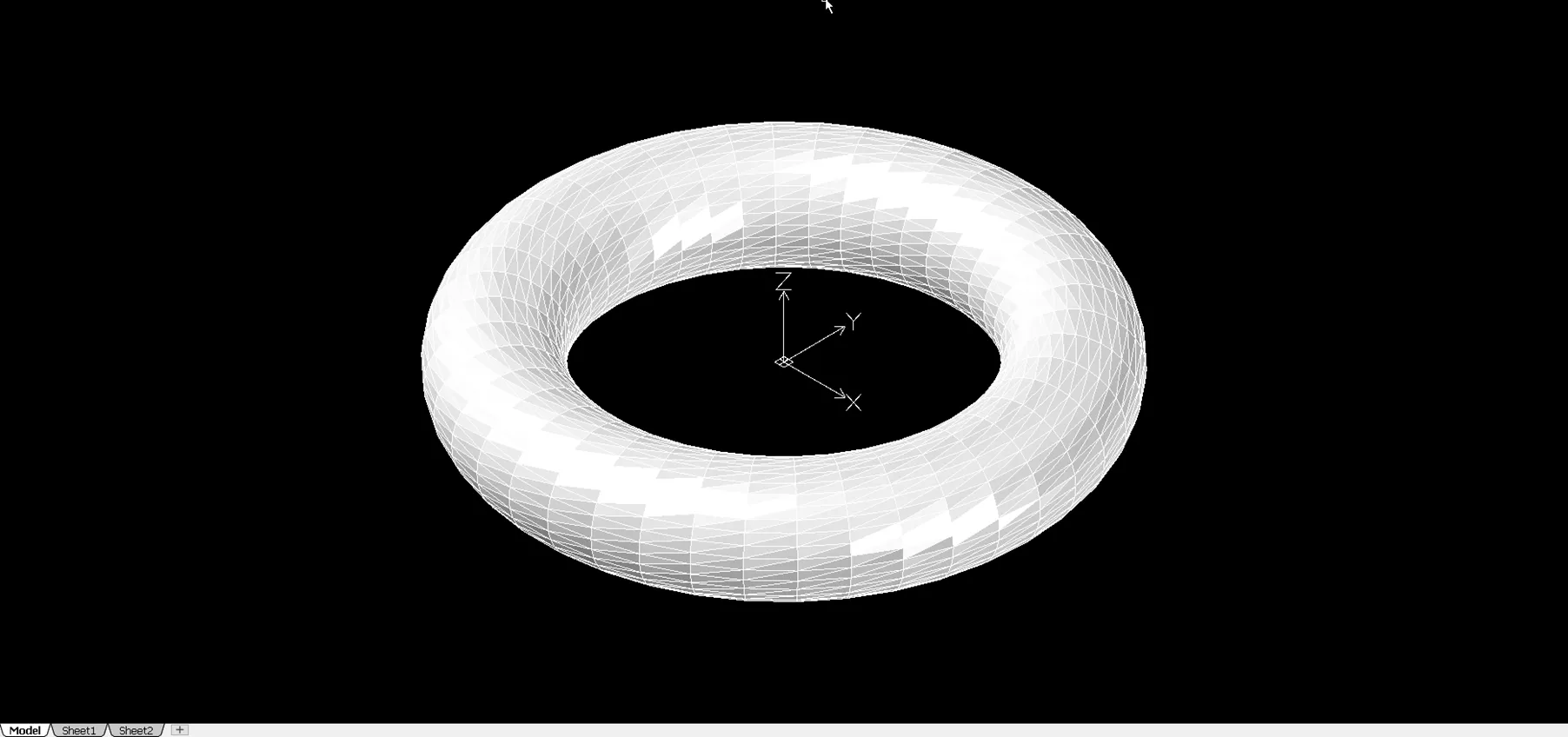

Go to the Home tab, select the Cone dropdown, and then the Torus button. The first input will be the center point of the sphere. Enter 0,0,0 in the command window. Next will be the radius. Either move your cursor to 20,0 or enter 20. The last input is for the radius of the tube. Move your cursor to 25,0,0 or enter 5. Since the shaded view was already on, your shape should look like this:
