"structural" couple positioning

[emi_973]

hi to all, when I insert the tiles (structural blocks) with the beam system it happens to me that they "connect" in the roof package and I can't take them on the floor of the strips. selecting all instances does not allow me to change the offset of the z axis and if I unblock them to one to one dissociate them from the reference plan. . . Besides putting us a week to change them all!:biggrin: I have to intervene on the family? and if yes, how?
Thank you.



[render54]

I solved creating an invisible roof as I saw doing on the Brazilian rio revit+ site
because the hoods made as a structural beam attacked me under me too
I cover my roof vertically, I give it a thickness of 9 cm and I apply the system of trap beams
on the upper face of this roof



[alpearchitetto]

Sorry to make the link I saw it (the one of the samba) but can't find it again?? Thank you.
I haven't tried yet.



[emi_973]

hi render, how do you create an invisible roof? a single layer of material with total transparency? and how do you put it on the visible roof?



[nativo]

place the roof link with timber and tiles:http://www.youtube.com/acadiario#p/c/f12bf5f3957b1695/24/jw9nwcdgjuwon the cardial ricardo blog http://autocad-revit-arquitetura.blogspot.com you will find many useful things ... also some fabulous renders 54 ( http://autocad-revit-arquitetura.bl...d-max=2010-05-20t09:03:00-03:00&max-results=7 http://autocad-revit-arquitetura.bl...d-max=2010-05-07t10:14:00-03:00&max-results=7 )
cation



[emi_973]

I don't care about the invisible roof, but if it's the only system, it's gonna be like this.
greetings and congratulations make for your "photographies"!



[render54]

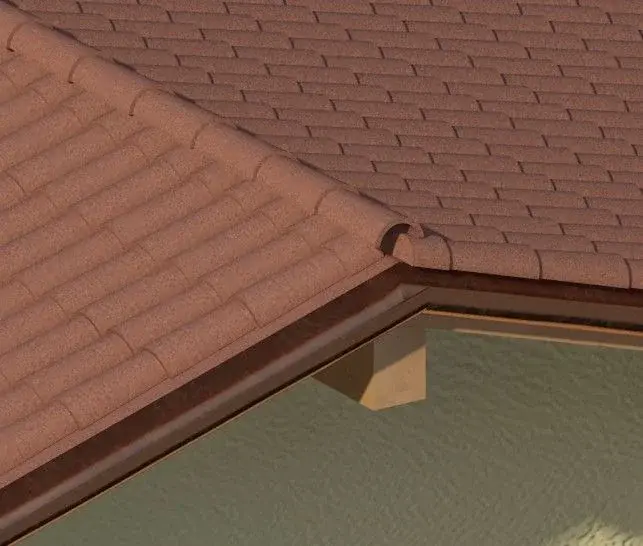

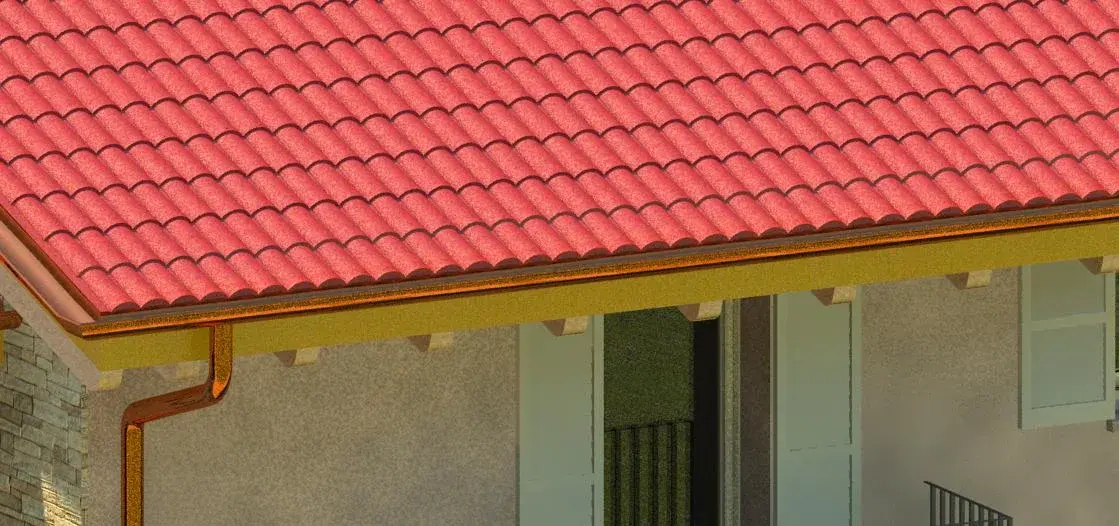

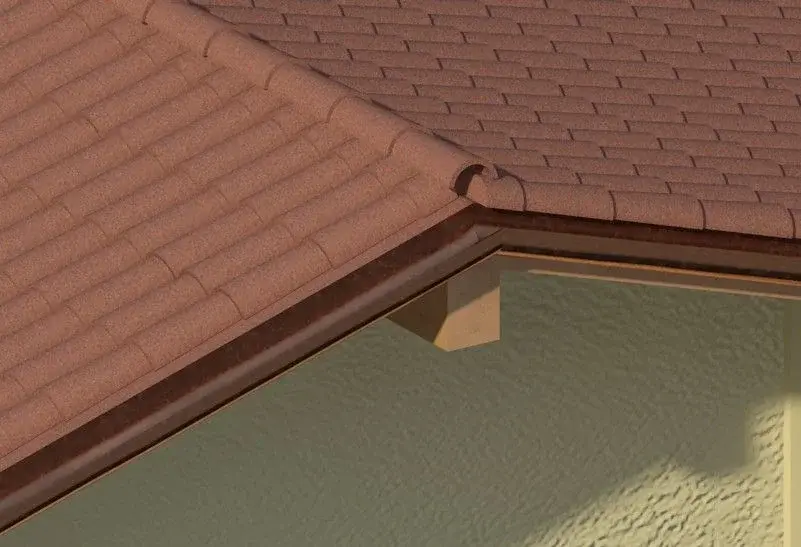

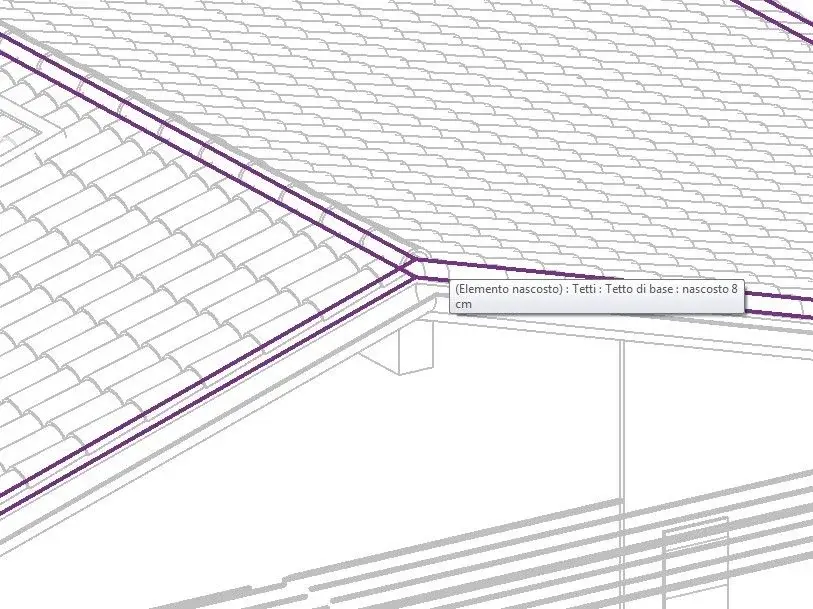

Here I put some explanatory image of my hidden roof
I hope you understand
as you see the renders with the active or disabled roof do not change



[emi_973]

Meanwhile, thank you very much for the interest. What I still don't understand is how to create that invisible roof? Maybe it's trivial, but I don't get there. .
Say hi.



[emi_973]

Okay! I copied it and left it on the spot, then I changed it with the previously created "invisible roof". tomorrow I put the tiles and then put the result.
Thank you again.



[render54]

put yourself in the prospectus or in a section and cover your top roof
then change it and call it or hidden or luigi, give it the height of 8 or 9 cm

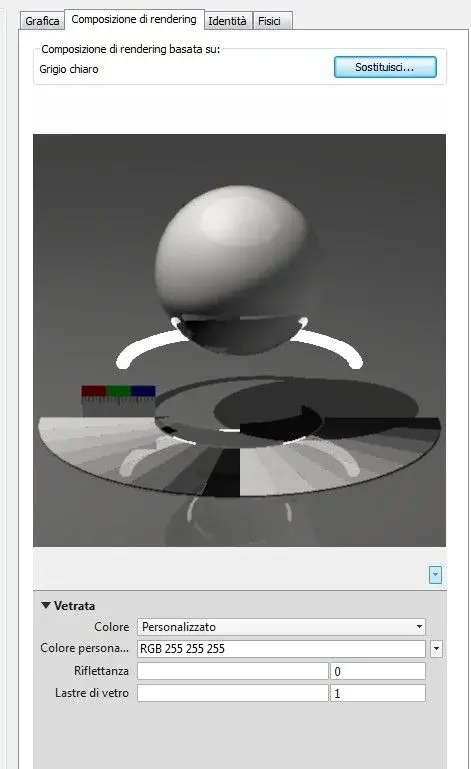

Give him a unique material as I put you
then pull it down and put it on the official ground
in 3d views is transparent, in 2d views, plants and prospects no,
so you hide it

Hi.
♪

oops when I wrote this I had not seen or arrived while writing your last
in which you said you solved



[emi_973]

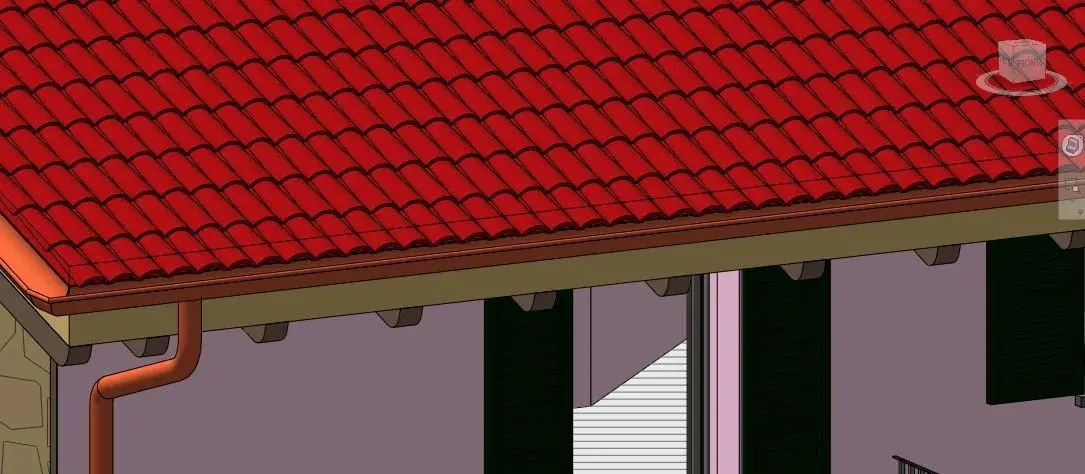

That's it! attached what I managed thanks to the suggestions of the teacher render54.. Of course my render is not subject to discussion!:biggrin::biggrin::biggrin:
Thank you.
greetings



[emi_973]

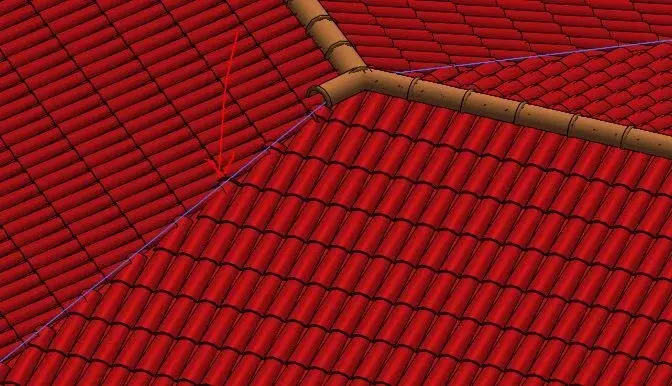

other small question in the matter of positioning of the plugs: to insert a row of hillsides in slope on the line of displuvio, as in the attached case, how should you proceed? How can I select that line?



[marpol]

I would do like this:
1.I draw a single beam selecting as a reference plan one of the two bonfires.
2. ruoto the beam just created around your axis until you get the desired result.



[emi_973]

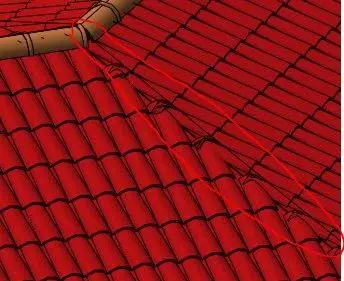

I'm sorry, maybe I've been wrong. the opening beam (or dot) is already, the roof package also, as well as the tiles. What I'd like to put is the top tile on the displusion line above the cover coat. perhaps in the screenshot you do not see well, but there is the hidden roof line (as suggested by render54). the first one you see is laid on the plane of others and should put it on the indicated line.
Say hi.



[alpearchitetto]

make complements for your...render and for the plugs!



[render54]

One compliments me, the other calls me master, it is useless
I'm a crust and I don't pay you a drink.
to insert the hillsides in slope you have to put the beam
that will be horizontal, attention that puts it on the level of work
so it happens that it goes under and does not see,
you can go to prospetti
then click on it and you will see that it gives you quotas to extremes
change them and the tile line tilts
I repeat: I do not pay you a drink



[emi_973]

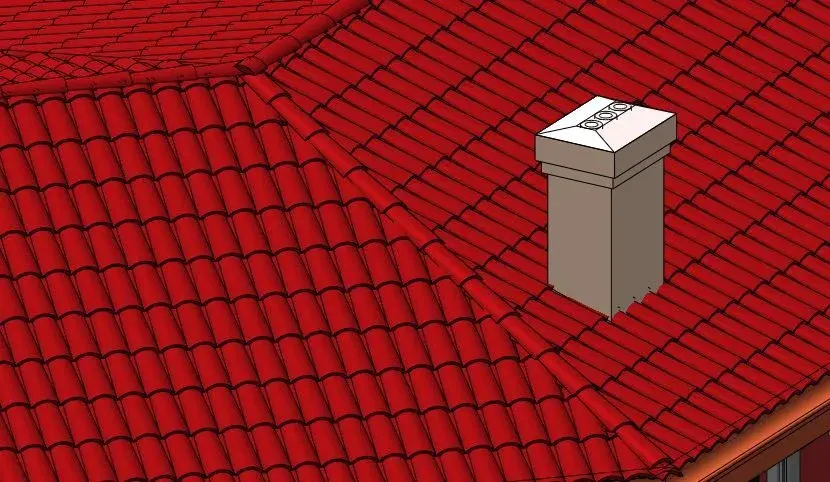

we say that if you are not a teacher, you are certainly the best among the pupils:biggrin: Anyway put the result obtained, according to the instructions of the sensei (see that teacher you don't like...) render54!:biggrin: however, in the position of the trevie a beam backwards, not allowing the three lines of colmi to join, as in figure. it is enough to give a beam a final offset value greater than one cm than the other to get what you see.
Thank you.

I'll buy you a drink.
Say hi.



[render54]

I like sensei more!
Do I have to grow the hot mustache?
It is necessary to say that these structural beams collide every once in a while
unfortunately to varese of relatives is no more (my father was native to albized)
I don't think I've ever come
In the 80's I did a little rally as a navigator and varese came
for the rally of varese a couple of times
but who remembers more



[render54]

I put the rfa file of the structural beam to make 3d plugs on request in private mail



[render54]

material for structural beam tiles
